Installation Requirements
Ensure your workspace meets these requirements for optimal performance and safety of the Vision Miner 22IDEX V4.
Tools & Materials
- Measuring Tape: To verify clearance.
- Dedicated Power Outlet: See power specifications below.
- Climate Control: Recommended if ambient conditions fluctuate significantly.

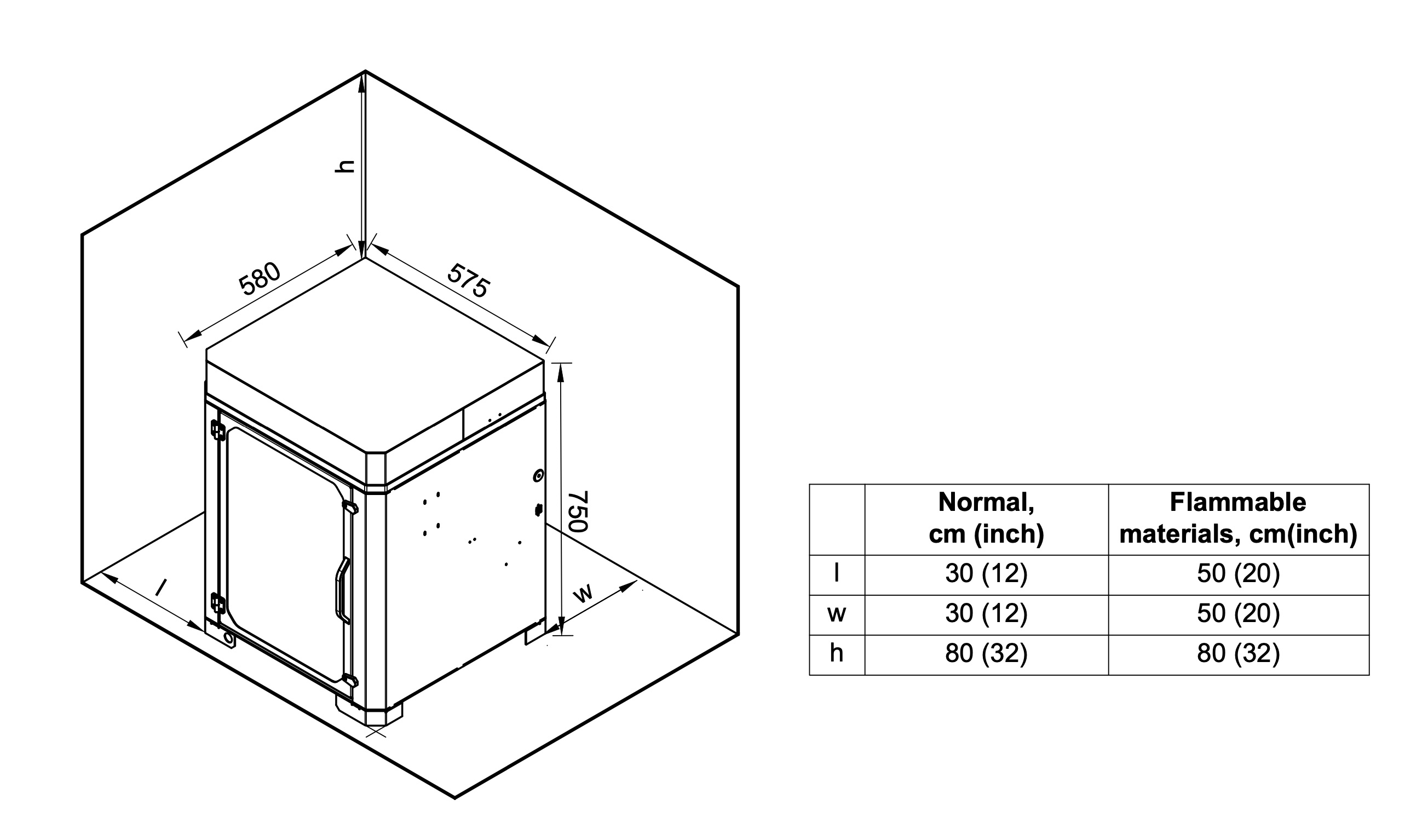

Space & Dimensions
Provide ample clearance for ventilation, maintenance, and door swing.
Environment
Maintain a stable environment to ensure print quality and component longevity.
| Parameter | Recommended Range | Impact |
|---|---|---|
| Temperature | 15�C - 30�C (59�F - 86�F) | Prevents overheating or thermal strain. |
| Humidity | 30% - 60% RH | High humidity affects filament quality and risks electronic components. |
Power Requirements
Not a dual-voltage system � single voltage only
The Vision Miner 22IDEX V4 is factory-configured for a single voltage input only. Connecting to the wrong voltage will cause severe damage. Verify your region's voltage before plugging in.
Insert power cable fully into the inlet
The NEMA 5-15p power cable must be inserted completely into the rear panel power inlet. A partially inserted cable can cause arcing, overheating, or connection failure.

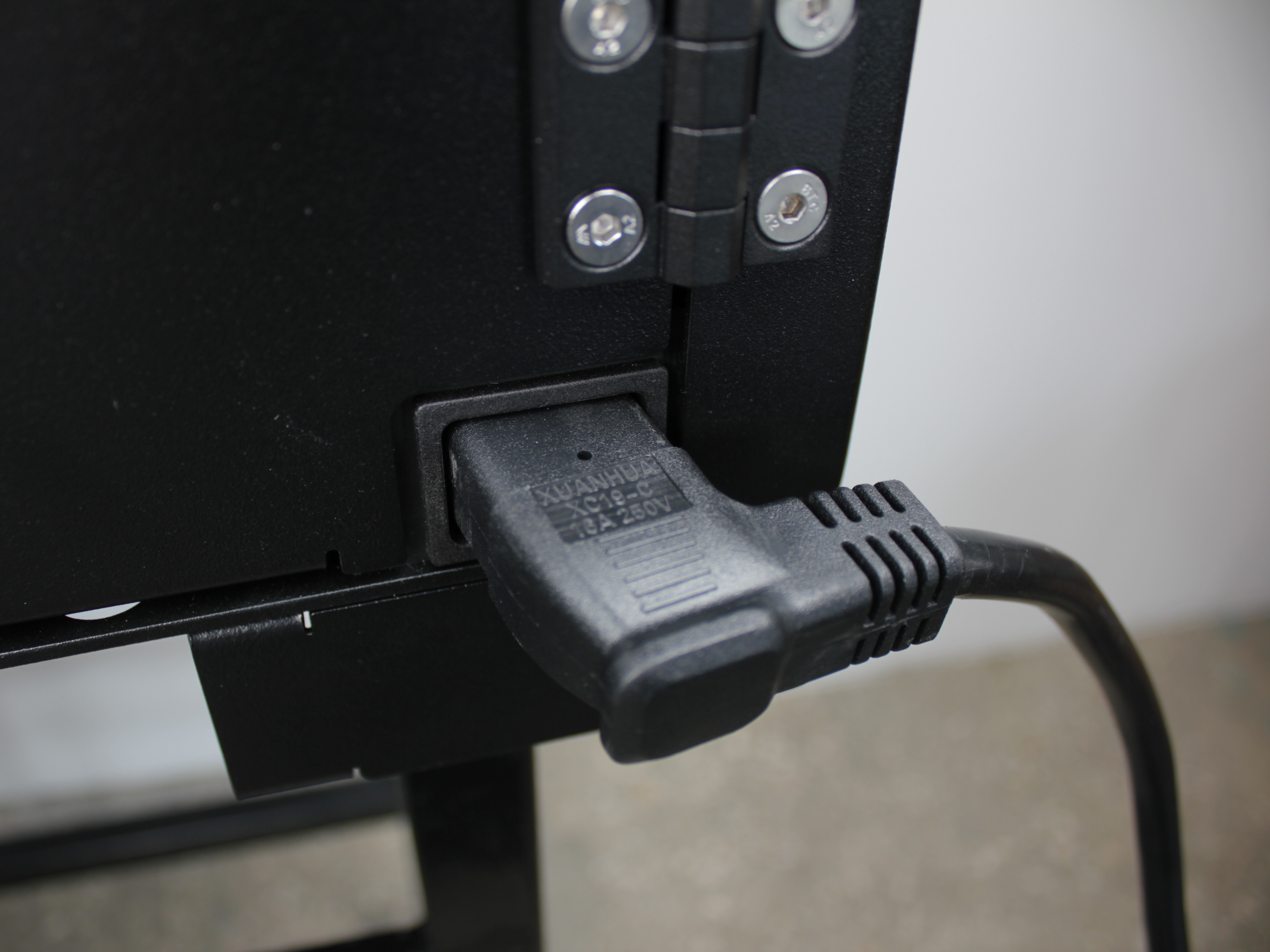

Incorrect: Cable is only partially inserted, leaving a visible gap. This can cause arcing, overheating, and connection failure.

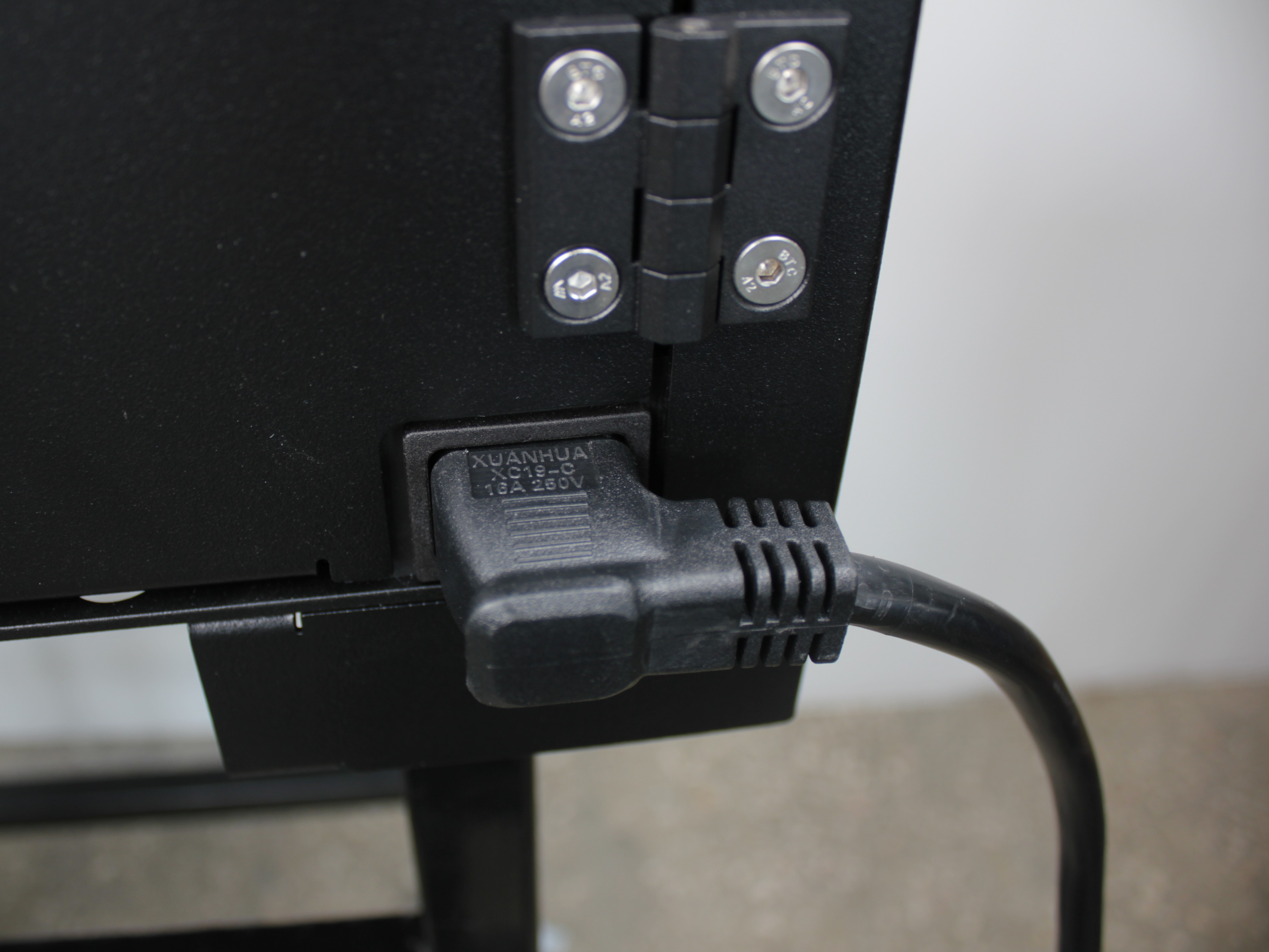

Correct: Cable is fully inserted into the inlet with no gap visible. Secure connection prevents electrical issues.
Configuration & Circuit Needs
| Region | Voltage | Max Power | Breaker Required |
|---|---|---|---|
| US / Others | $110-120V$ | ~$2200W$ (20A) | Dedicated 20A Circuit |
| EU / Others | $220-240V$ | ~$2200W$ (10A) | Dedicated 15A Circuit |
Included Cable: NEMA 5-15p � ensure the cable is fully inserted into the rear panel inlet.
Normal Printing Power Consumption
| Material Type | Examples | Average Draw |
|---|---|---|
| Low-Temp | Nylon, ABS, PC | 700W - 1000W |
| High-Temp | PEEK, PEKK, PPSU | 1000W - 1200W |
Troubleshooting
Support
If you could not find an answer here, reach out to our support team.
