Maintenance Schedule

Maintenance Schedule outlines inspection, cleaning, and replacement intervals to keep your Vision Miner 22IDEX V4 in optimal condition. Regular maintenance prevents component wear, minimizes downtime, and ensures consistent print quality.

Recommended Spare Parts

Keep these components on hand to minimize downtime during high-temperature printing. This list is based on experience and customer feedback.

Hotend

Fans and Air Filtration

Motion System

Sensors and Wiring

Consumables and Tools

Daily Maintenance

1. Build Plate - Clean with isopropyl alcohol after each print to remove residue. Apply a full coat of Nano Polymer Adhesive after cleaning depending on condition.

Weekly Maintenance

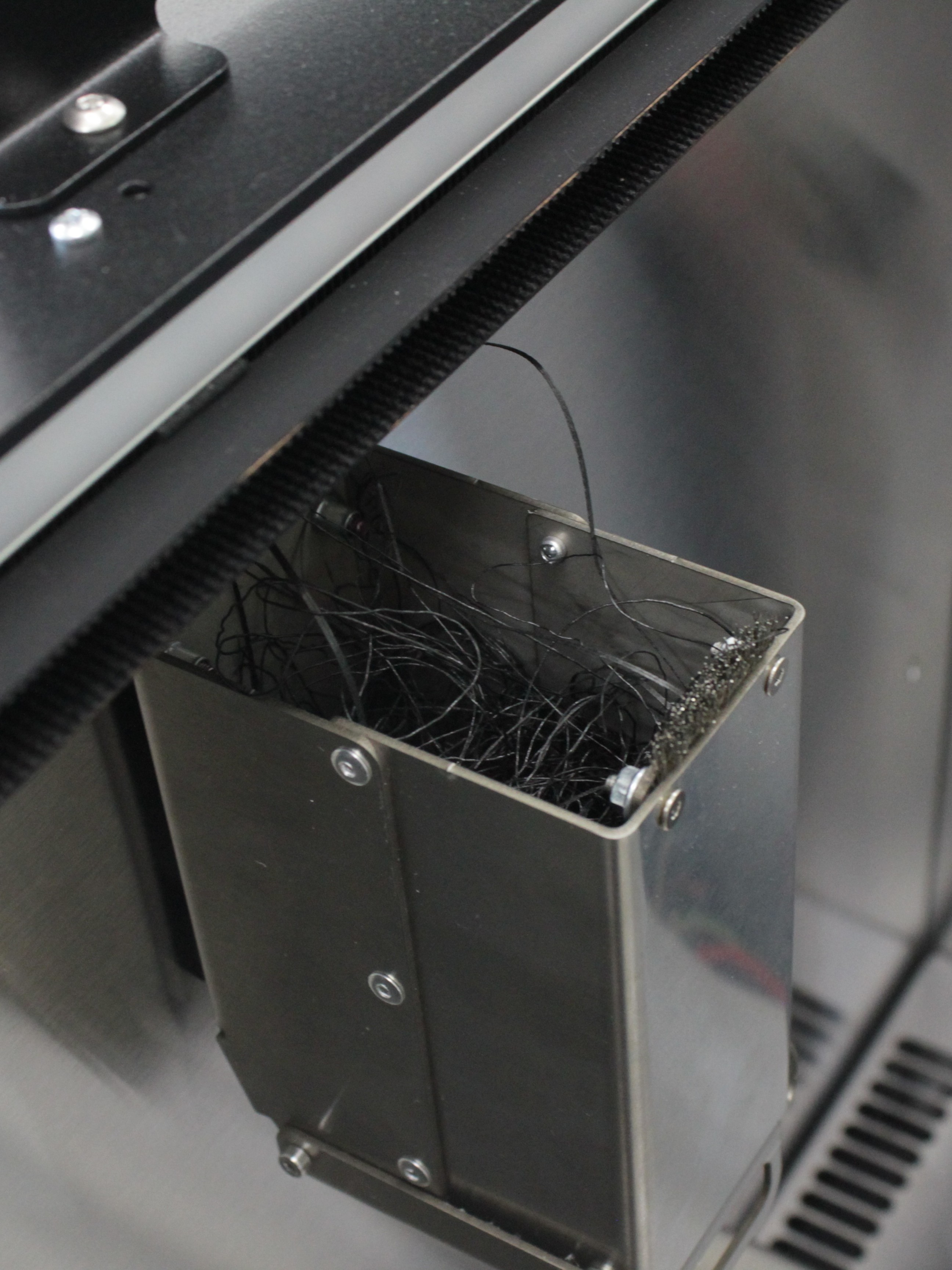

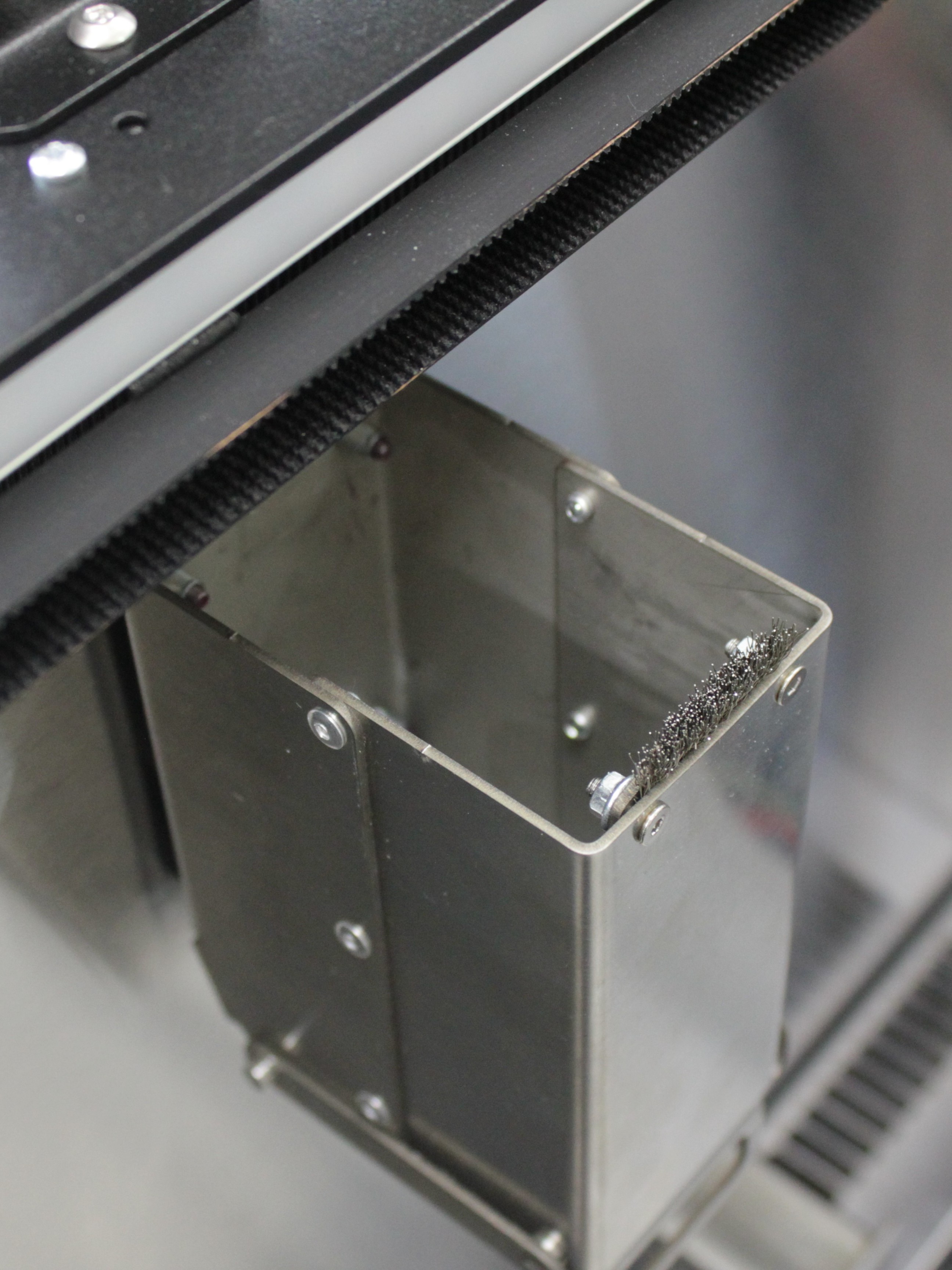

1. Purge Bins - Empty bins with tweezers, removing all accumulated filament. Ensure nozzle brushes have no filament residue.

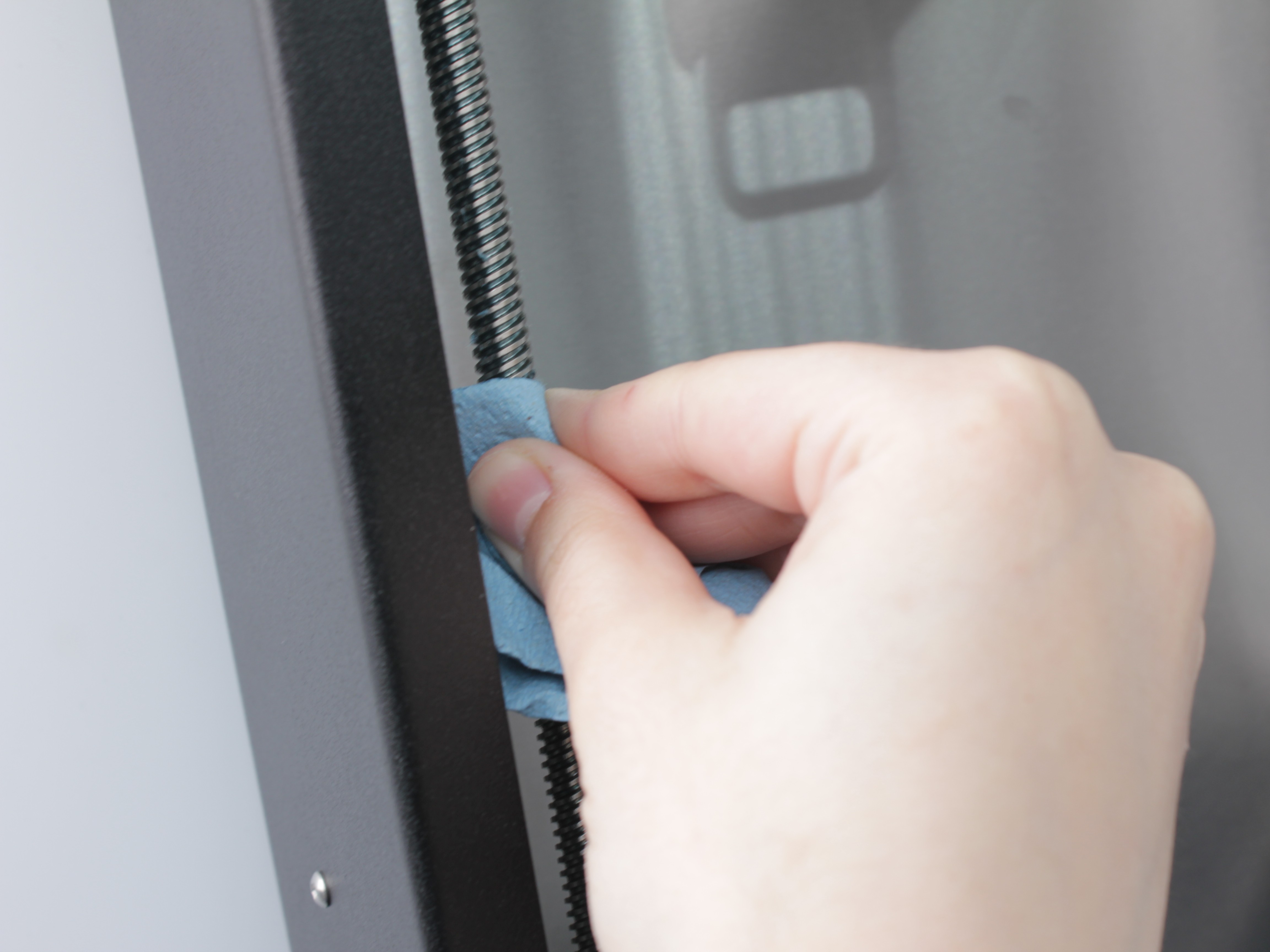

2. Z-Axis Lead Screws - Clean lead screws with a paper towel. Remove old lubricant.

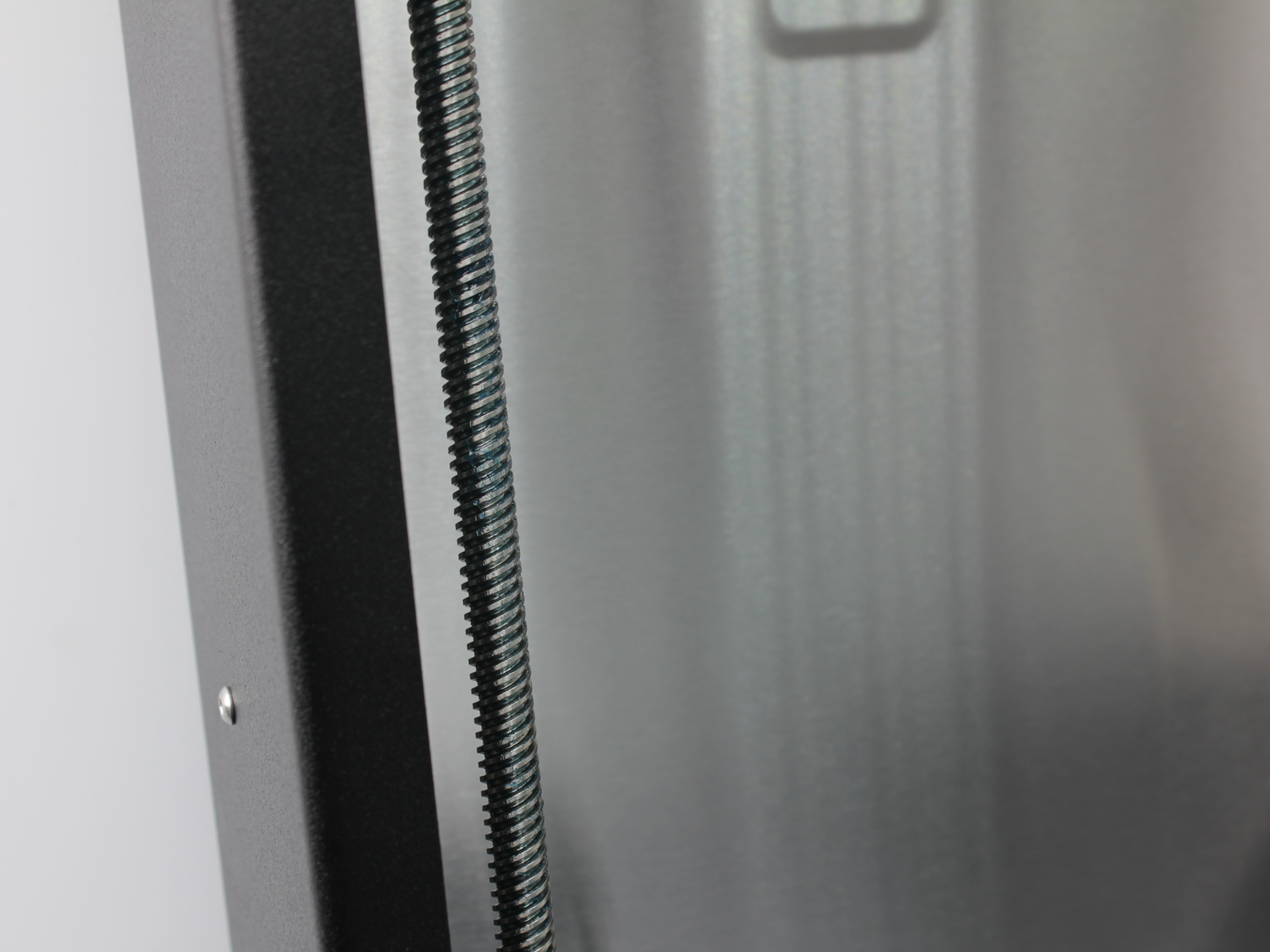

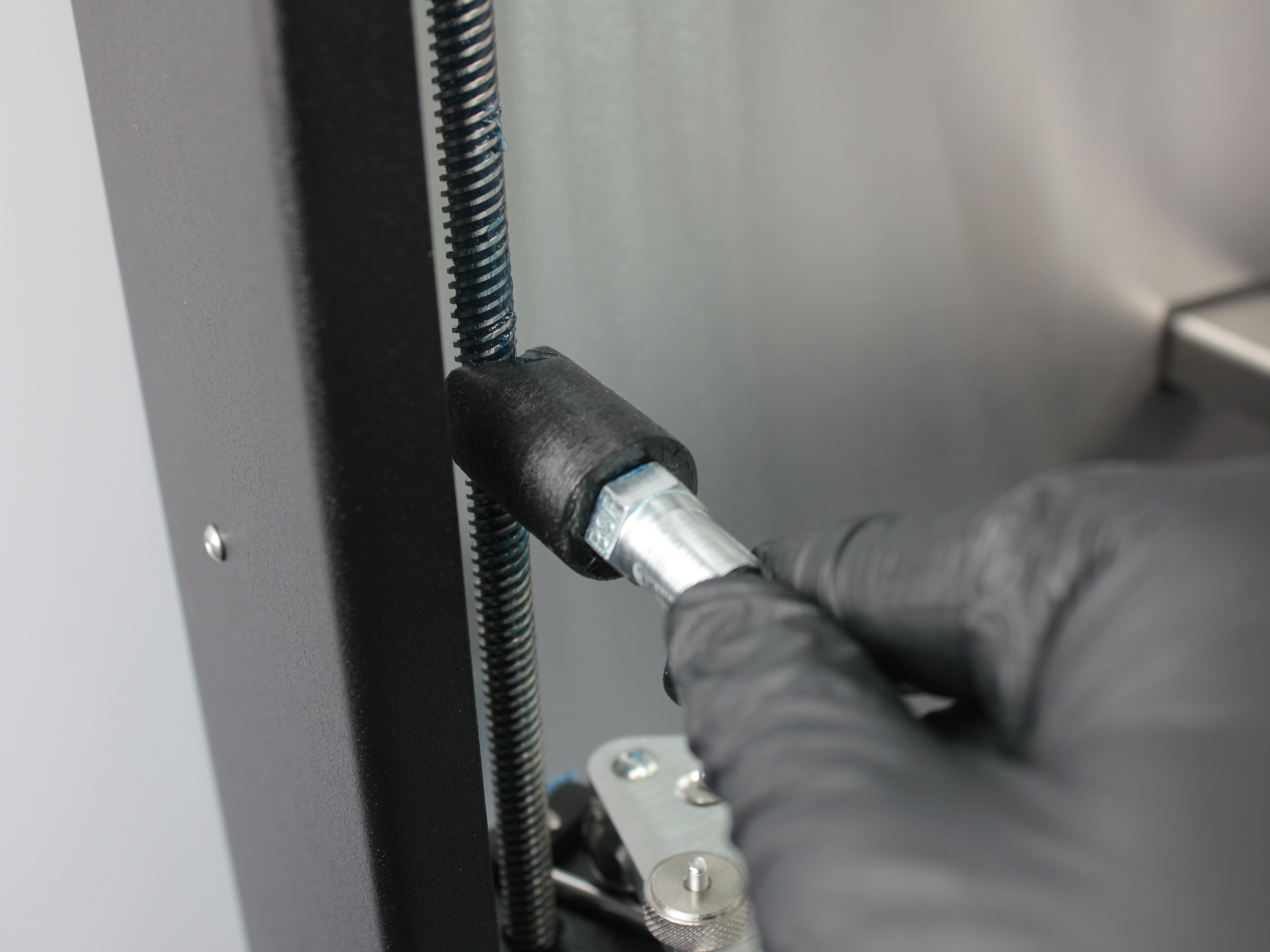

Apply new lubricant evenly.

Verify lubricant is evenly distributed across all threads.

For detailed lubrication procedures and troubleshooting, see the Lubrication Guide.

3. Chamber - Use a vacuum cleaner or compressed air to remove dust and filament particles.

Monthly Maintenance

1. Extruders - Disassemble and clean extruder drive gears.

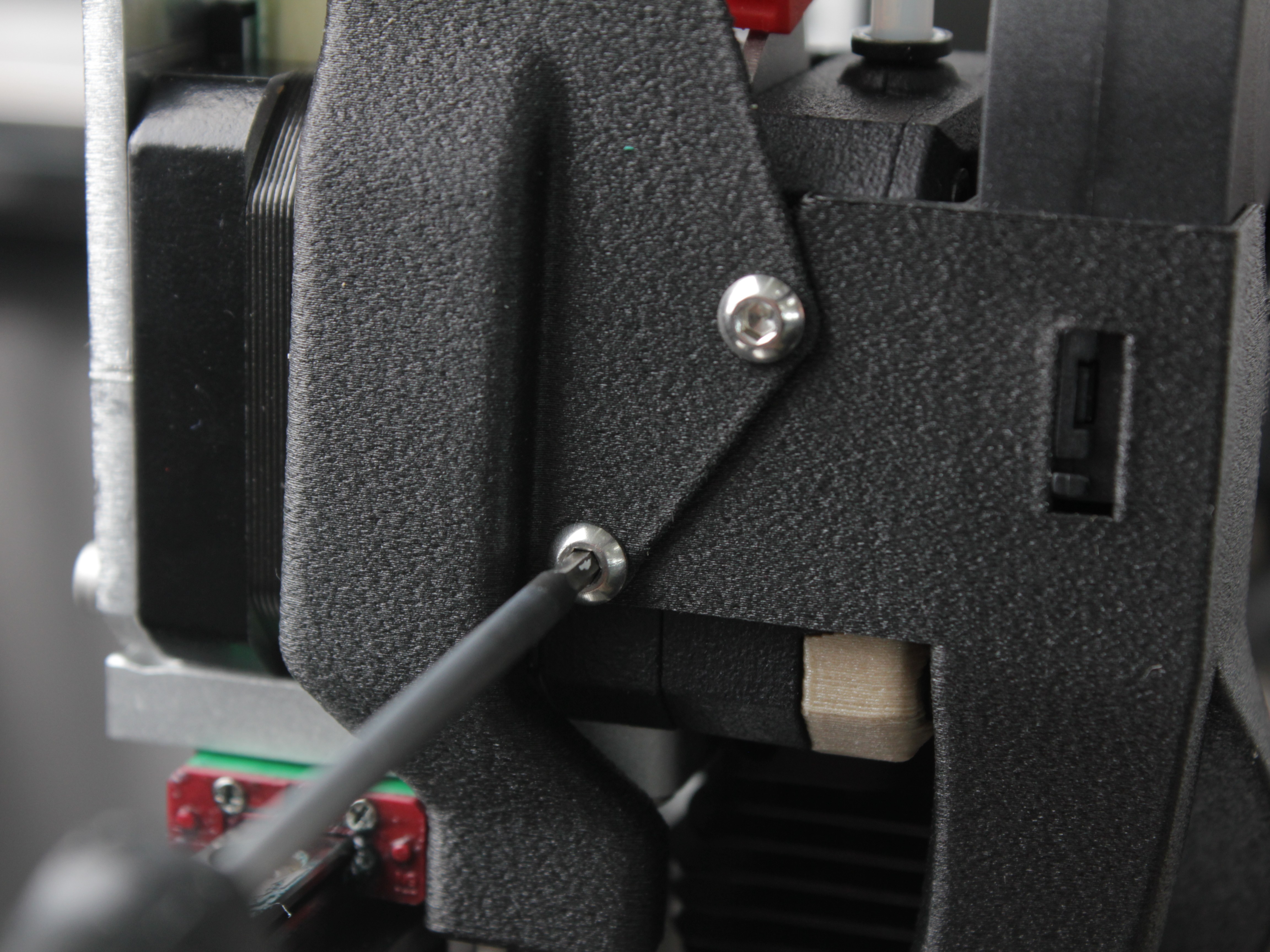

Step 1: Remove 2 screws securing fan shroud and cable protection cover.

Step 2: Remove 4 screws on the front panel of the extruder.

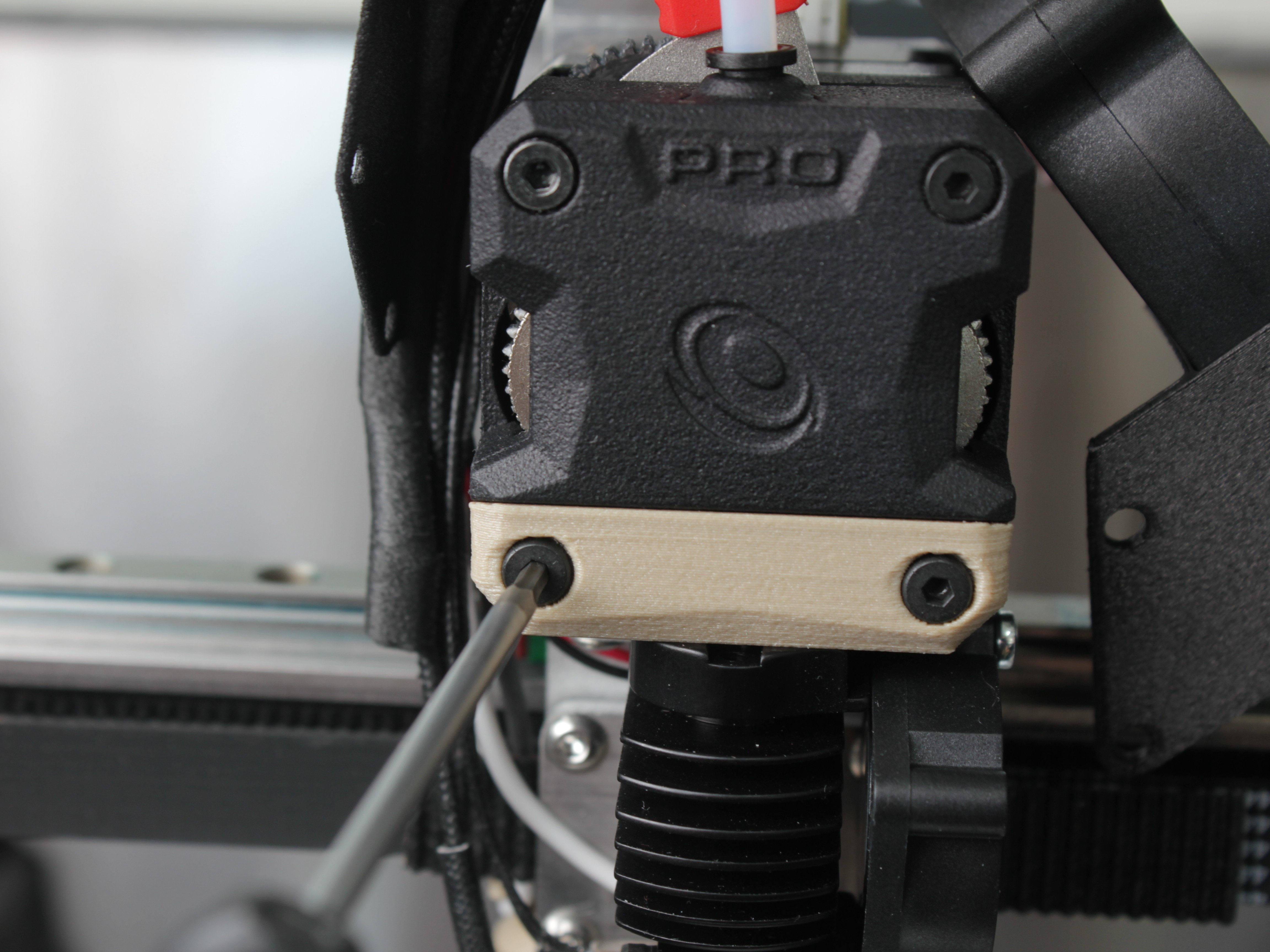

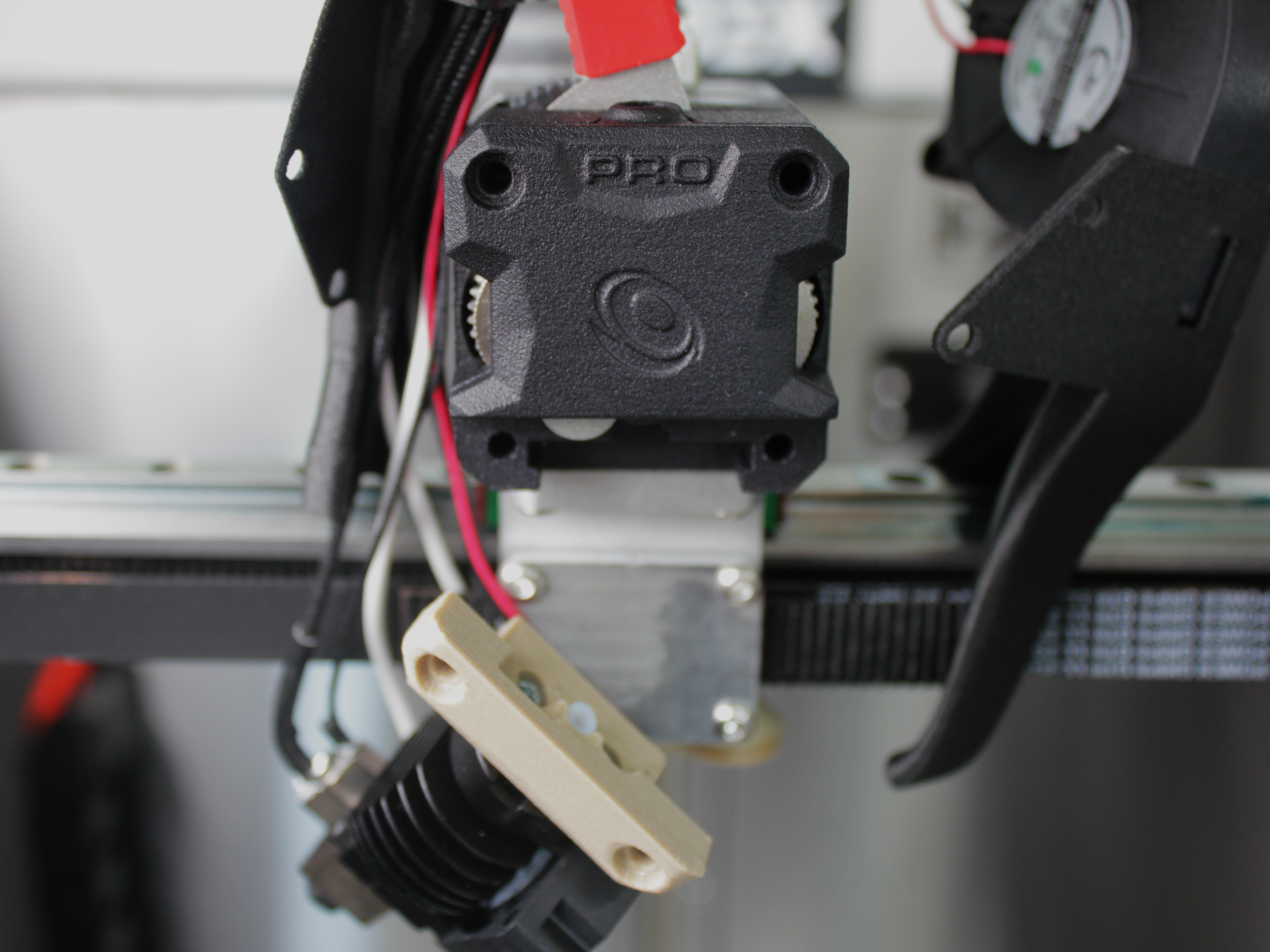

Step 3: Remove the radiator adapter bracket (printed part holding the hotend radiator).

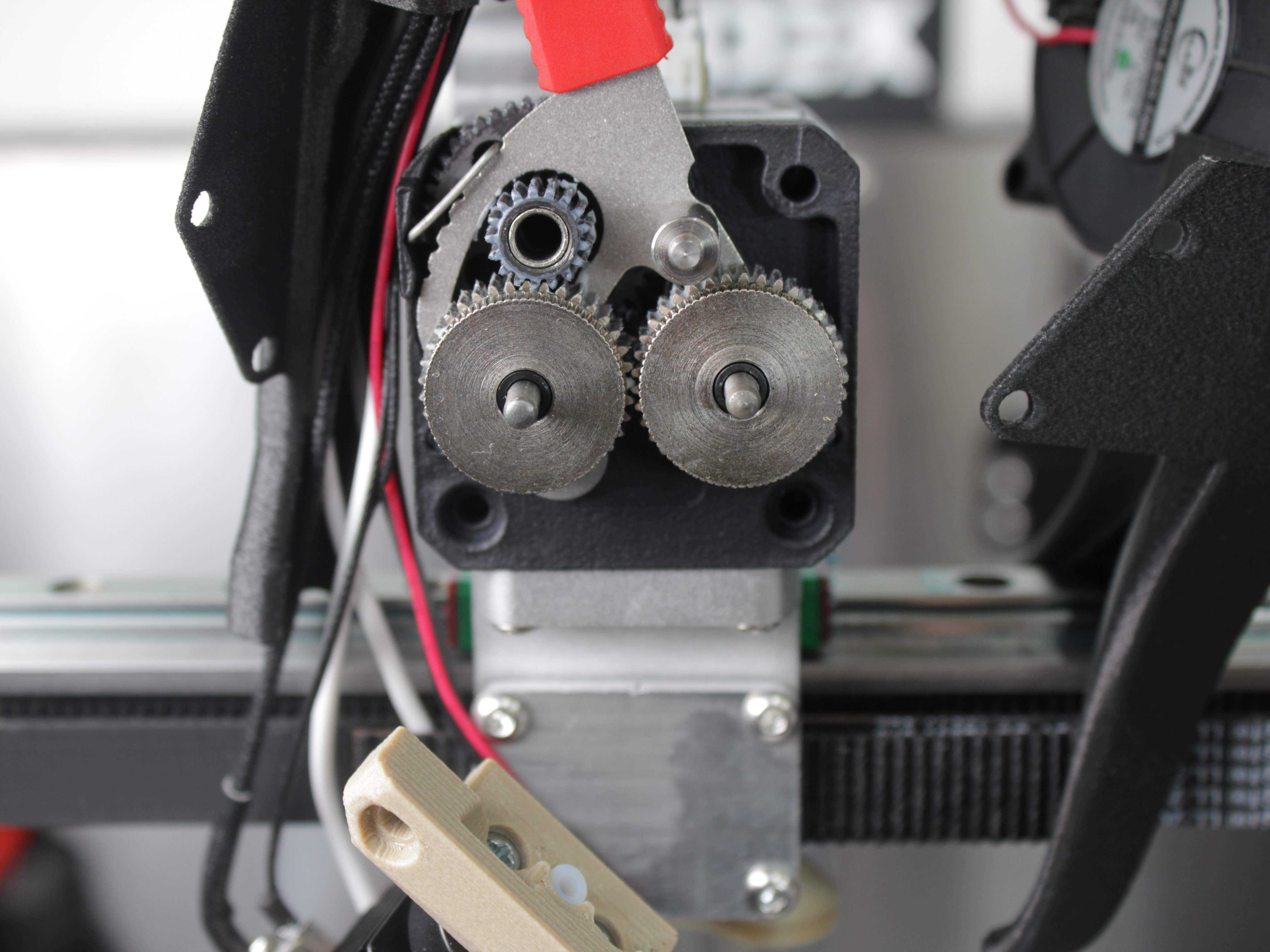

Step 4: Remove the front extruder panel to expose drive gears for cleaning and lubrication. Reassemble in reverse order.

For additional information on extruder disassembly, see the Extruder Replacement Guide.

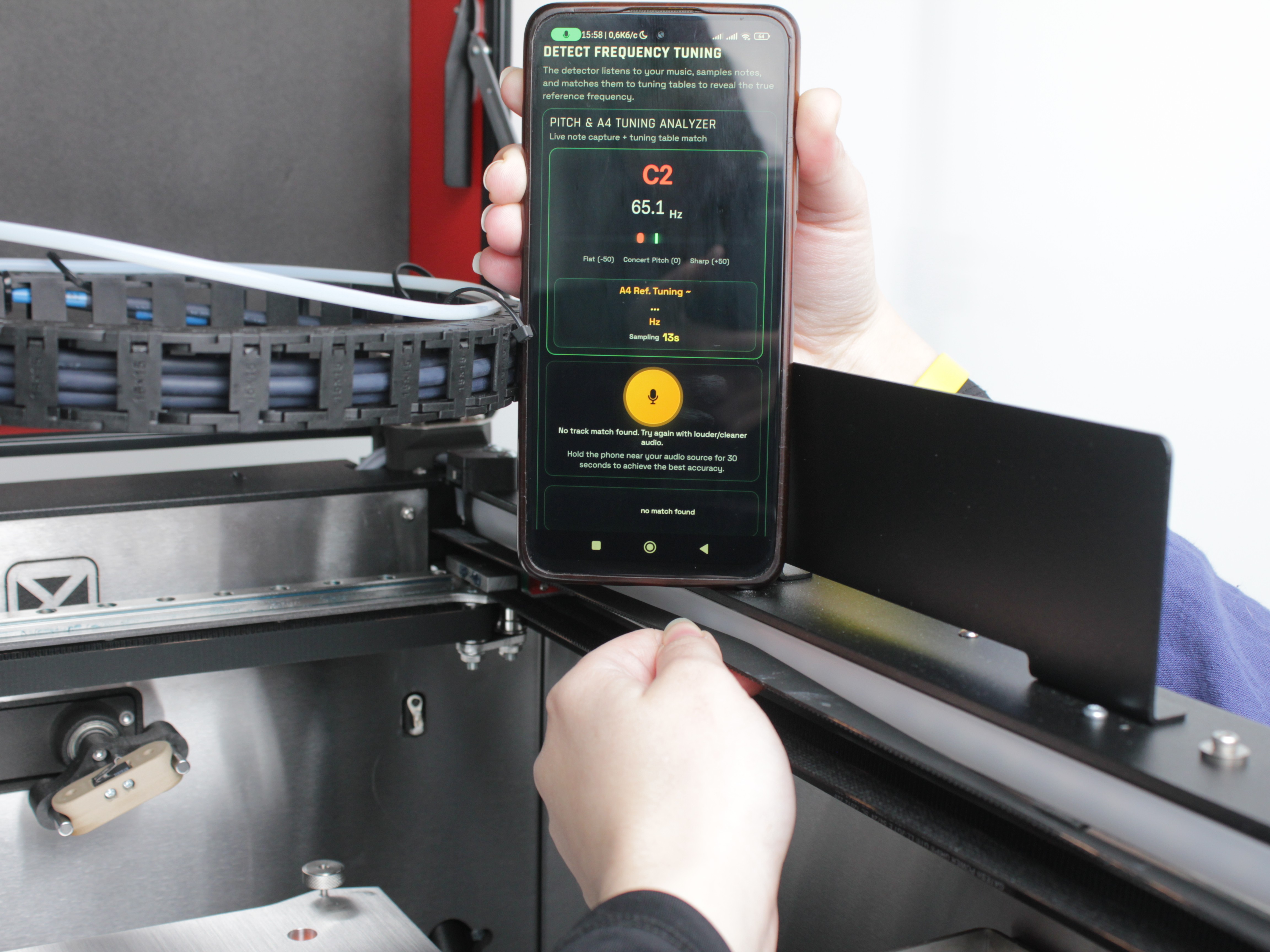

2. Belt Tension - Check and Adjust Tension, All 4 Belts

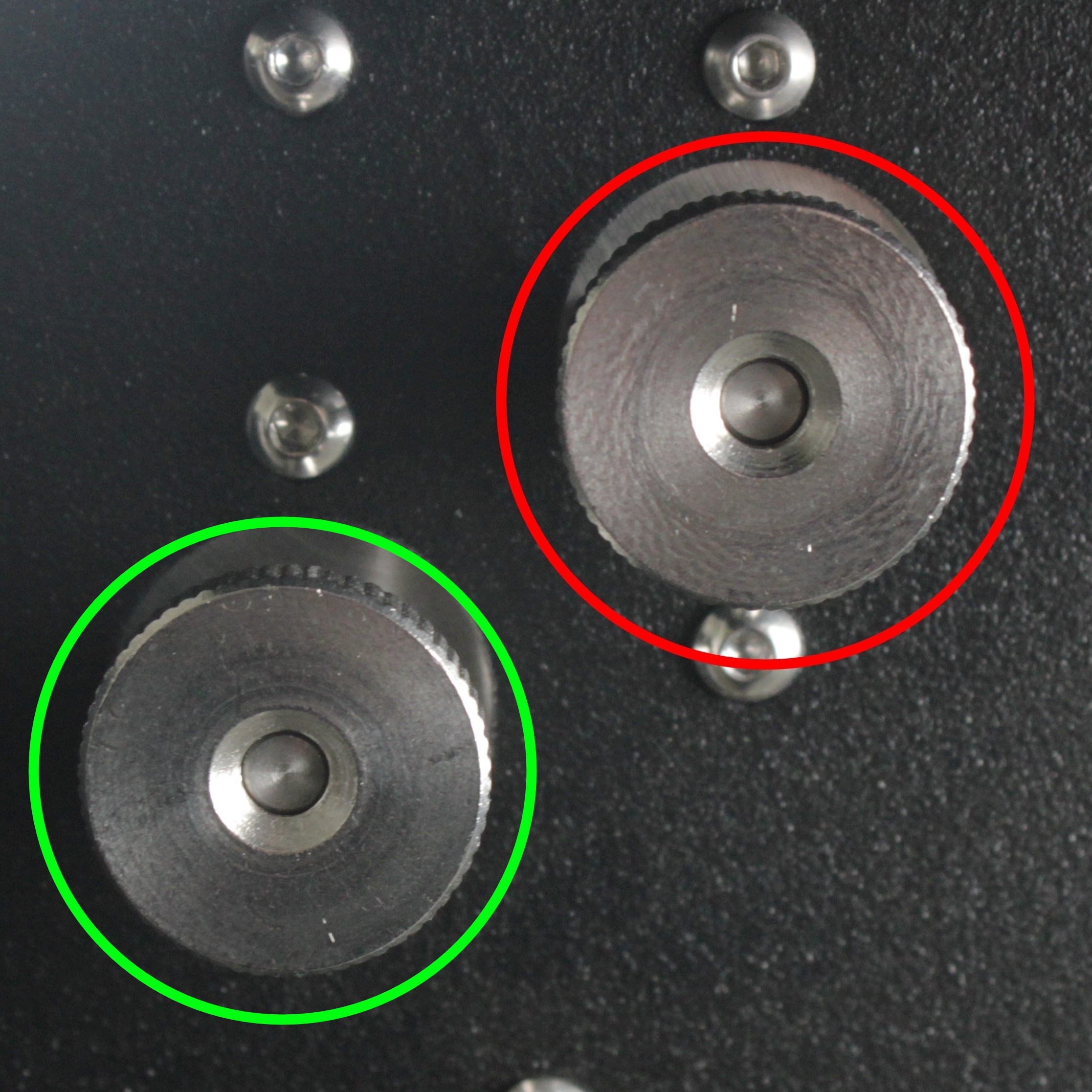

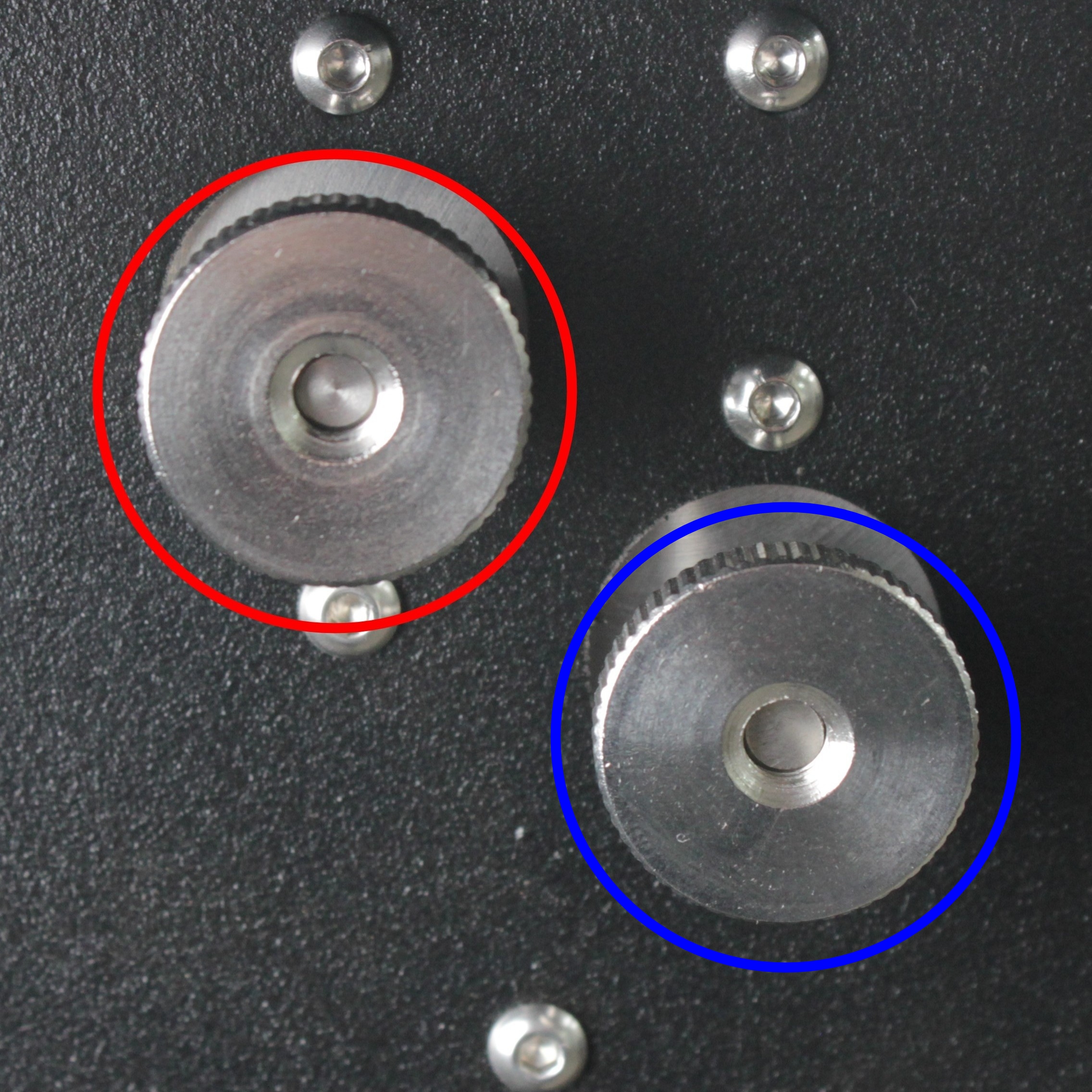

Color markings on the photos above:

Verify tensioners and idlers rotate smoothly without binding. See Belt Tension Guide for detailed instructions.

3. Crossbar Belt Rollers (Bearings) - Check the round rollers at both ends of the crossbar that the belts run around. Look for bearings with a changed color and for bearings that do not rotate.

Where they are. Each roller is a stack of three small bearings on one axle. The rollers sit under the crossbar, on steel plates secured with three nuts each, and the X and U belts run around them. There are two rollers at each end of the crossbar, on the T0 side and on the T1 side.

Early or later version? If you are not sure whether your V4 is an early or a later build, look at the gap between the bearings in the stack. On later machines there is a washer between the bearings, as in the photos above. Early machines did not have this washer, and this is the main reason the bearings on them can fail.

How to check. Turn the printer off, let it cool to room temperature, disconnect the power cord and open the lid. Then check every roller on both sides:

• Color. All bearings should have the same bright metallic color. A bearing that is darker, rusty, brownish, or visibly different from its neighbors in the stack or from the same roller on the other side is a defect.
• Rotation. Draw a short line with a permanent marker on the outer ring of every bearing. Move the toolhead along the full length of the crossbar, then move the crossbar back and forth by hand. Check that every marker line has moved. A line that stays in place means that bearing is not rotating.
• Sound and feel. Listen for squeaks, grinding or clicking, and feel for sticking points while you move the axes.

Image not yet added

If you find a defect, do not disassemble the crossbar. Contact our support team and send a short video of the check, close-up photos of the roller, and your printer's serial number. We will advise on the next steps.

For the full step-by-step procedure, including the marker test, see the Bearings Inspection guide.

4. Hotend Temperature Sensors - Inspect wiring for damage or wear. Monitor temperature readings in the Web Interface for unusual spikes or fluctuations. Replace the sensor if readings are unstable.
5. Hotend Heaters - Inspect wire insulation for cracks or heat damage. Replace the heater if wiring is compromised.
6. Radiator Cooling Fans - Verify the fans spin smoothly and quietly. Test by preheating the tool and lightly touching the fan blade to check motor torque. Clean the dust from the fan blades if needed.
7. Hot End Ground Wires - Verify ground wires are intact with good insulation. Check secure connection to hotend.

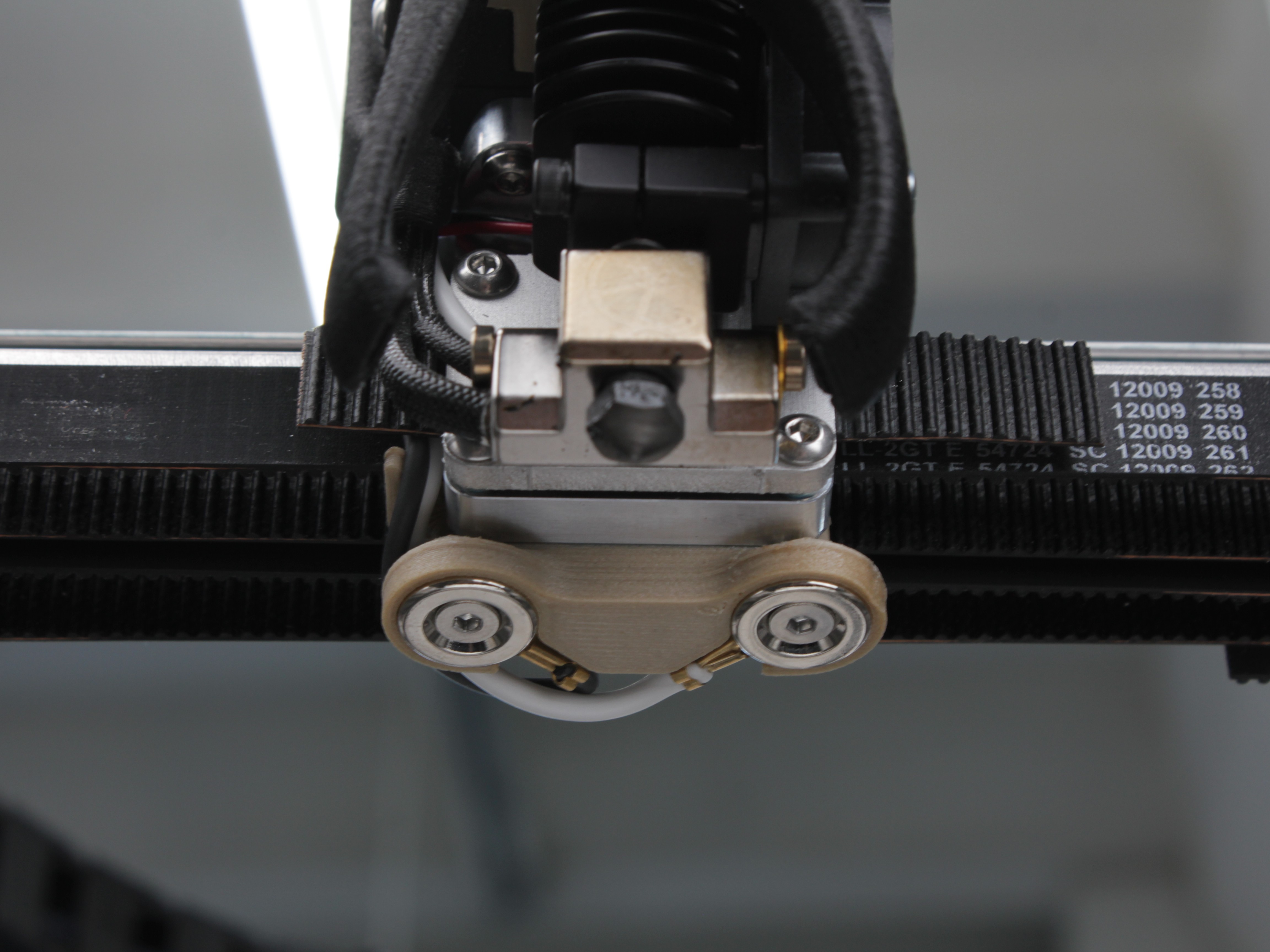

Check Z-probe wiring for damage or wear. Ensure connections are secure.

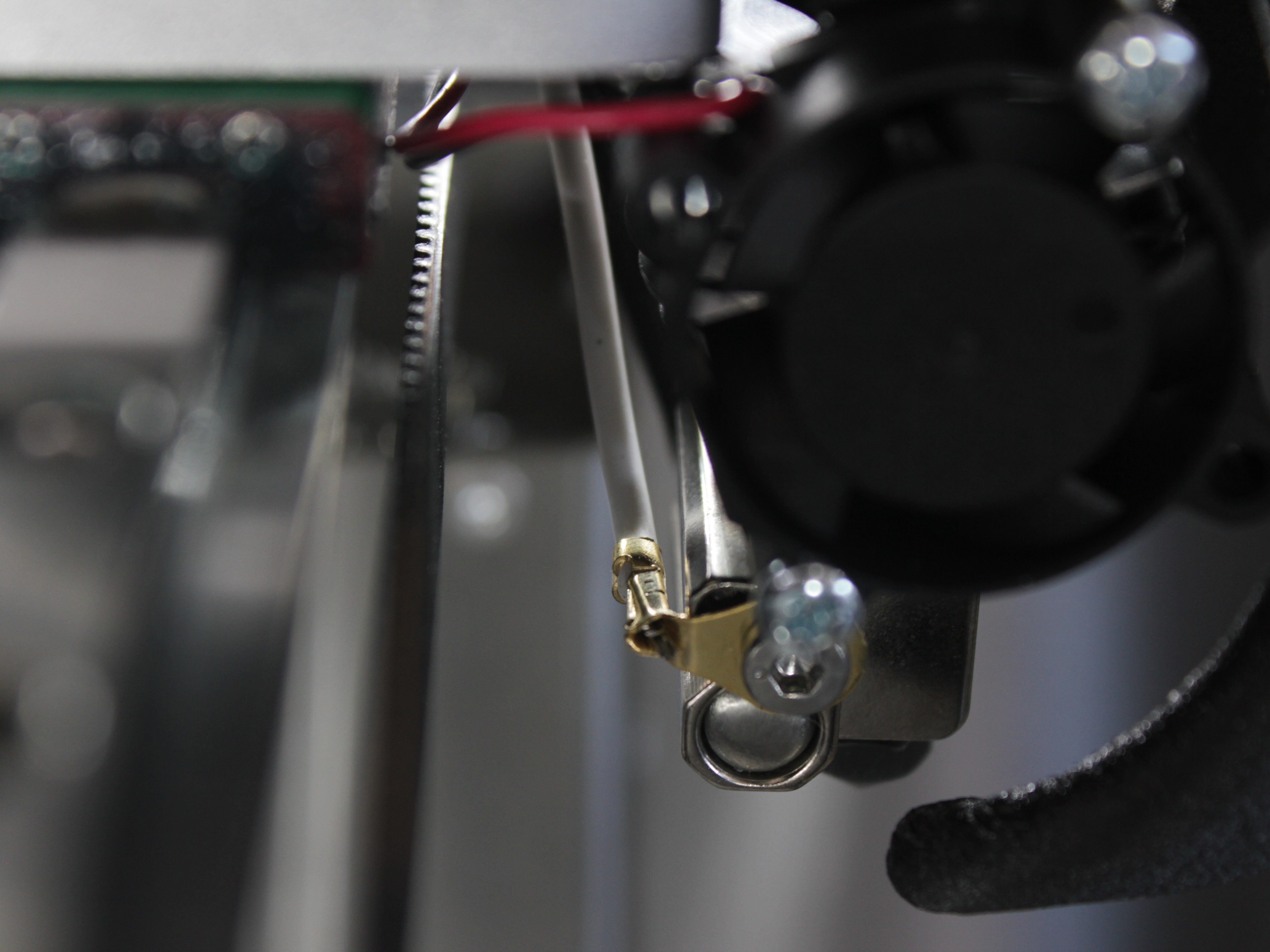

Verify hotend ground wire is intact with good insulation and secure connection.

8. XY Linear Rails - Inspect the rails for dirt or debris. Wipe them clean with a lint-free cloth if contamination is present. Apply fresh lubricant if the rails appear dry.
9. Z-Axis Lead Screws - Wipe off old lubricant from the lead screws using a paper towel. Apply fresh lubricant evenly along the screws.
10. General Printer Cleaning - Power off the printer completely. Use a soft brush and a vacuum to remove dust and debris from the entire printer:

• Clean all exterior panels and doors
• Vacuum the build chamber thoroughly
• Remove filament debris from all areas
• Electronics bay: Use an anti-static brush carefully. Vacuum dust gently to help prevent electrical shorts
• Inspect all cable routing and secure any loose wiring

Yearly Maintenance

1. XYU Belt Idlers - Inspect all 8 idlers (4 per side). There are two types:
   • Idlers with bearings (Y-axis tensioner and tool tensioners): Check for bearing wear - listen for unusual noise during rotation.

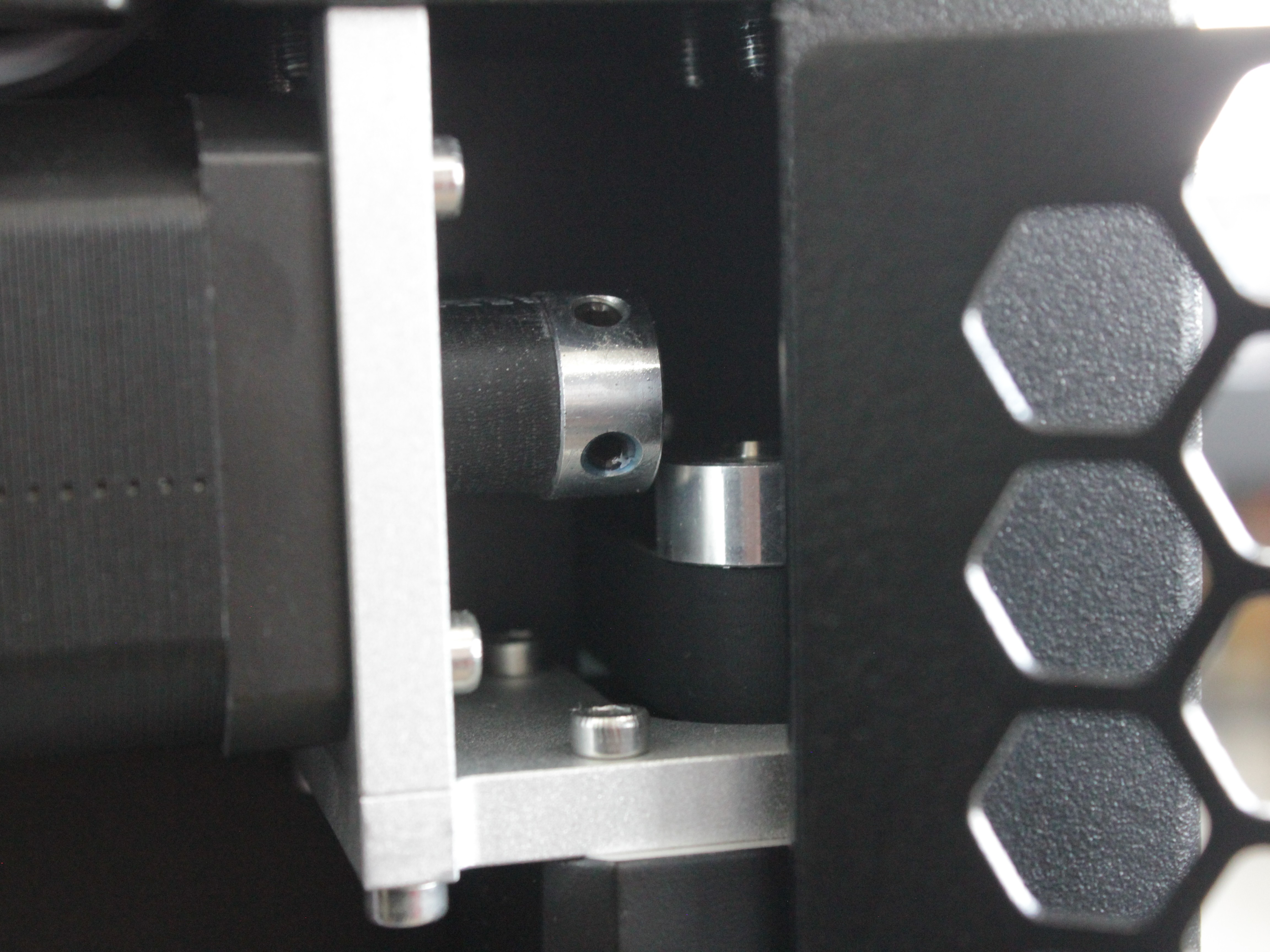

   • Idlers on motors: Check for tooth wear - inspect teeth condition visually.

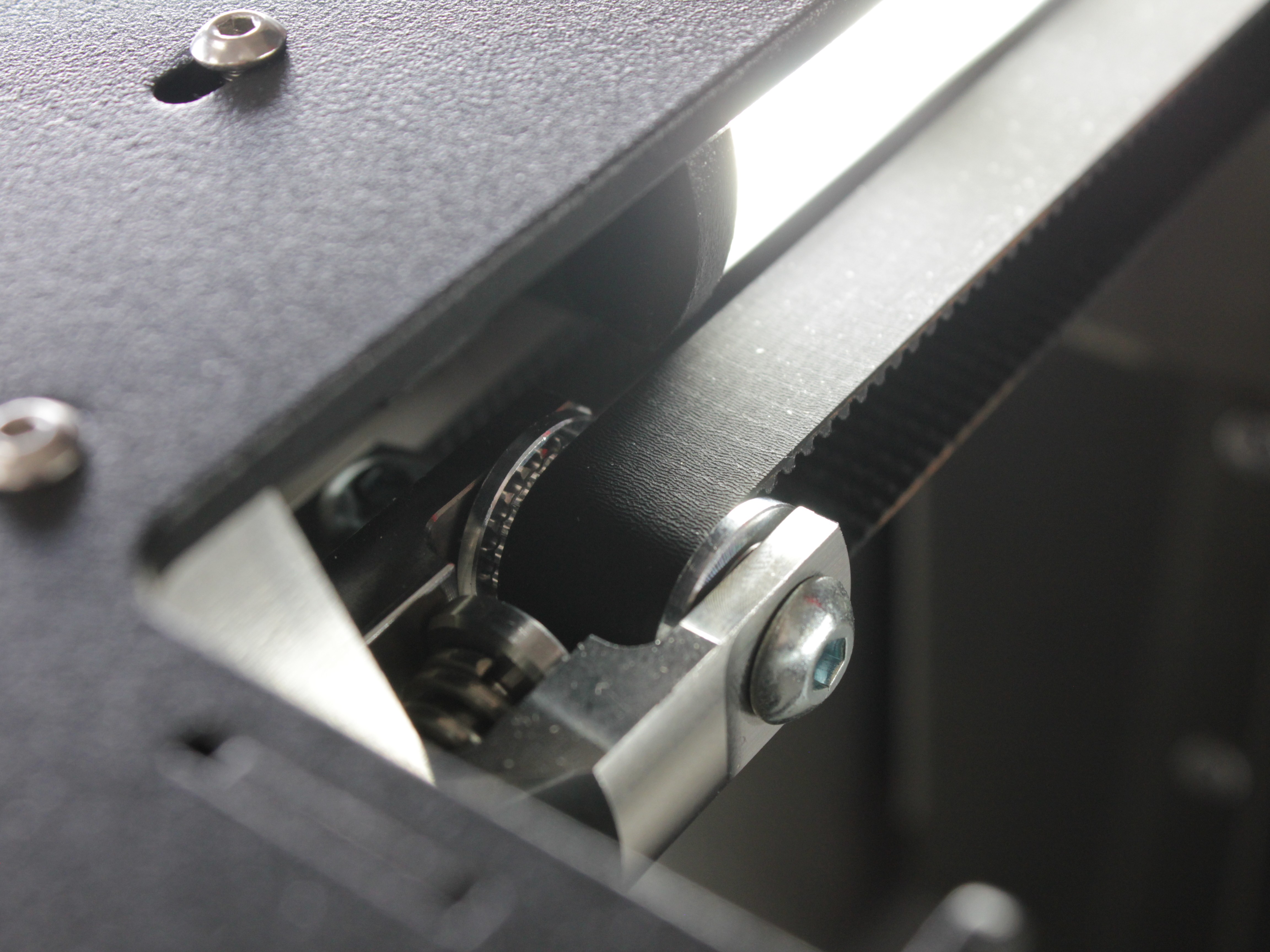

Y-axis tensioner idler - verify smooth rotation without binding. Listen for unusual noise indicating bearing wear.

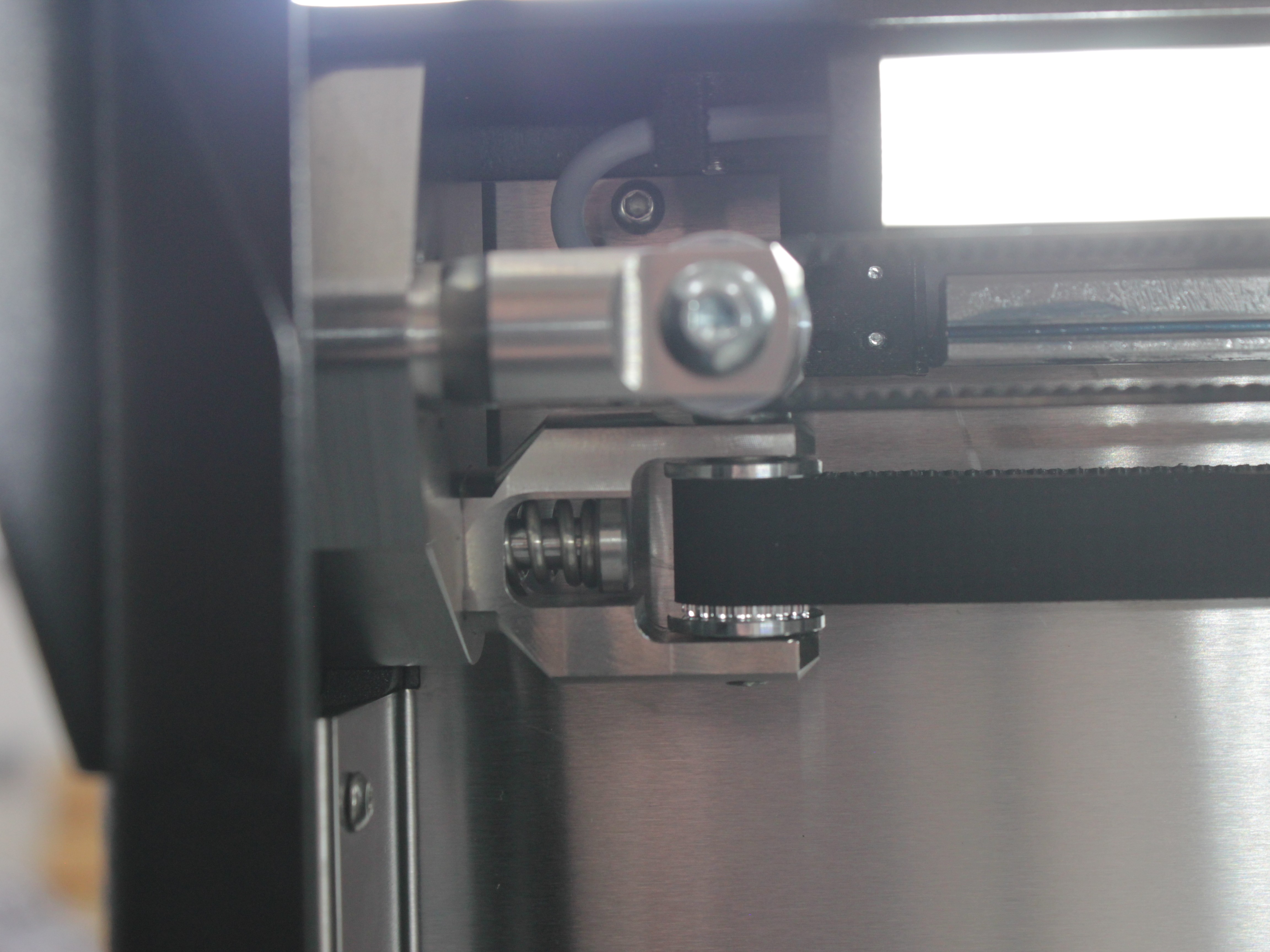

Tool tensioner idler - check bearing condition. Replace if rotation is not smooth or if noise is present.

Motor idlers - inspect teeth for wear or damage. Replace if teeth are worn or damaged.

Identical configuration on the opposite side of the machine. For replacement instructions, see the Front Idler Replacement Guide.

2. Filament Sensors - Test sensor functionality. Inspect wiring for wear or damage.
3. Part Cooling Fan - Activate manually and check for noise and torque. Inspect wiring for wear. Replace if noisy, weak, or wiring is damaged.
4. Chamber Heater Fan - Verify airflow and heating efficiency. Check wiring for damage. Replace if airflow is weak, heating takes too long, or fan makes unusual noise.
5. Chamber Circulation Fan - Check for noise and torque. Inspect wiring condition. Replace if noisy, weak, or wiring is compromised.
6. HEPA Filter - Inspect the filter media. Replace the filter once a year, or every 6 months under heavy use or frequent high-temperature printing. Replace sooner if airflow drops noticeably or the white filter media looks clogged or discolored. The filter cannot be cleaned and reused. See the HEPA Filter Replacement Guide for instructions. Printers with serial number 295 or lower use a Rev 1 filter - contact our support team for a replacement.
7. Z-Motor Lead Screw - Check lead screw play by moving it up and down manually. If excessive play or wobble is detected, replace the Z-motor.
8. Z-Motor Nut - Hold the lead screw stationary with one hand. Grasp the bed carriage bracket with the other hand and move up/down. If play is detected, replace the Z-motor nut.
9. Bed Thermistor - Preheat the build plate and verify temperature stability. Replace if temperature spikes occur.
10. Heat Breaks - Inspect for clogs or damage. Replace if clogged or broken.
11. Nozzles - Replace based on material type and operating hours.
12. Wiper Brushes - Inspect bristles. Replace if damaged.

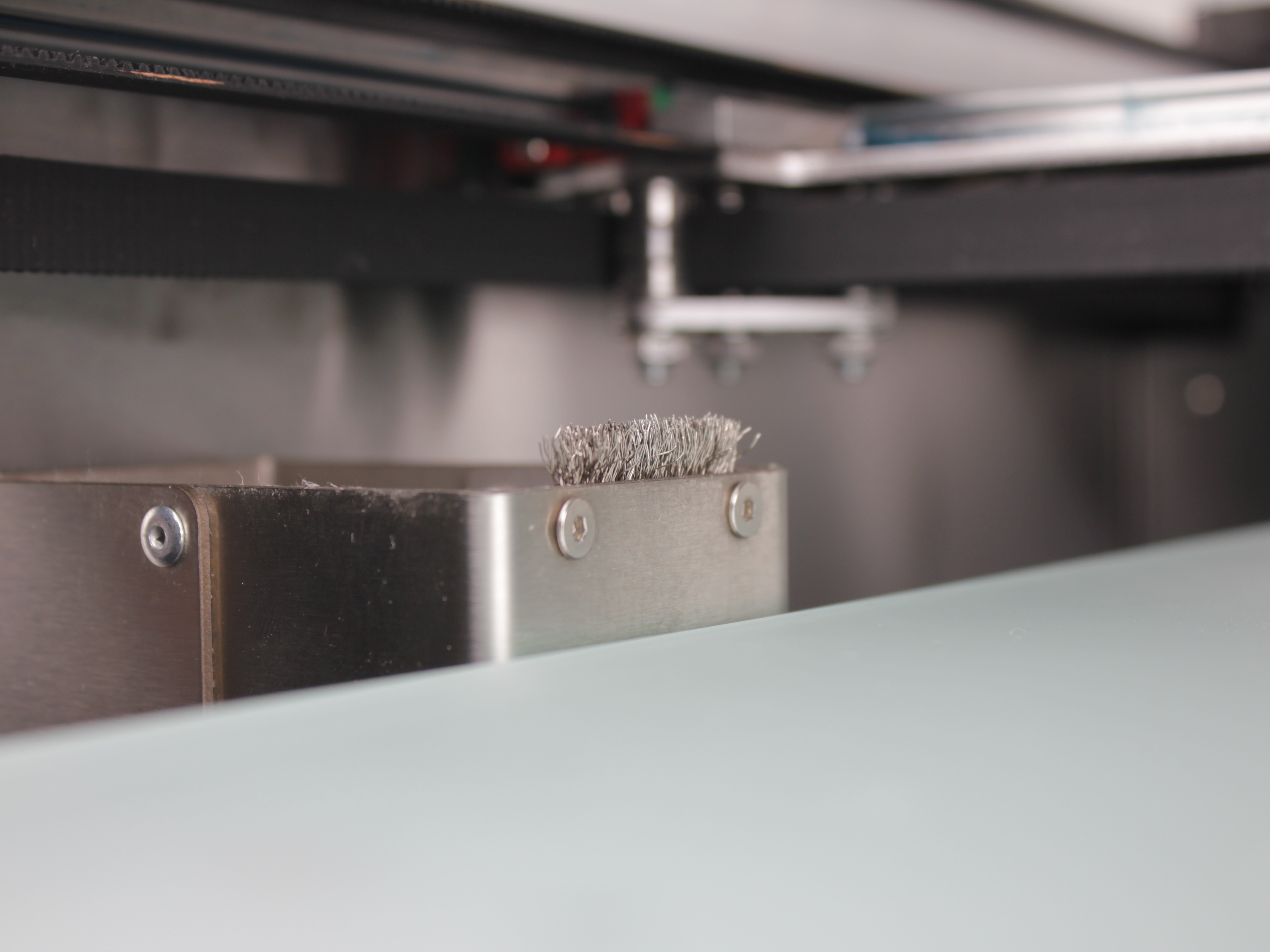

Good wiper brush - bristles are intact and evenly distributed.

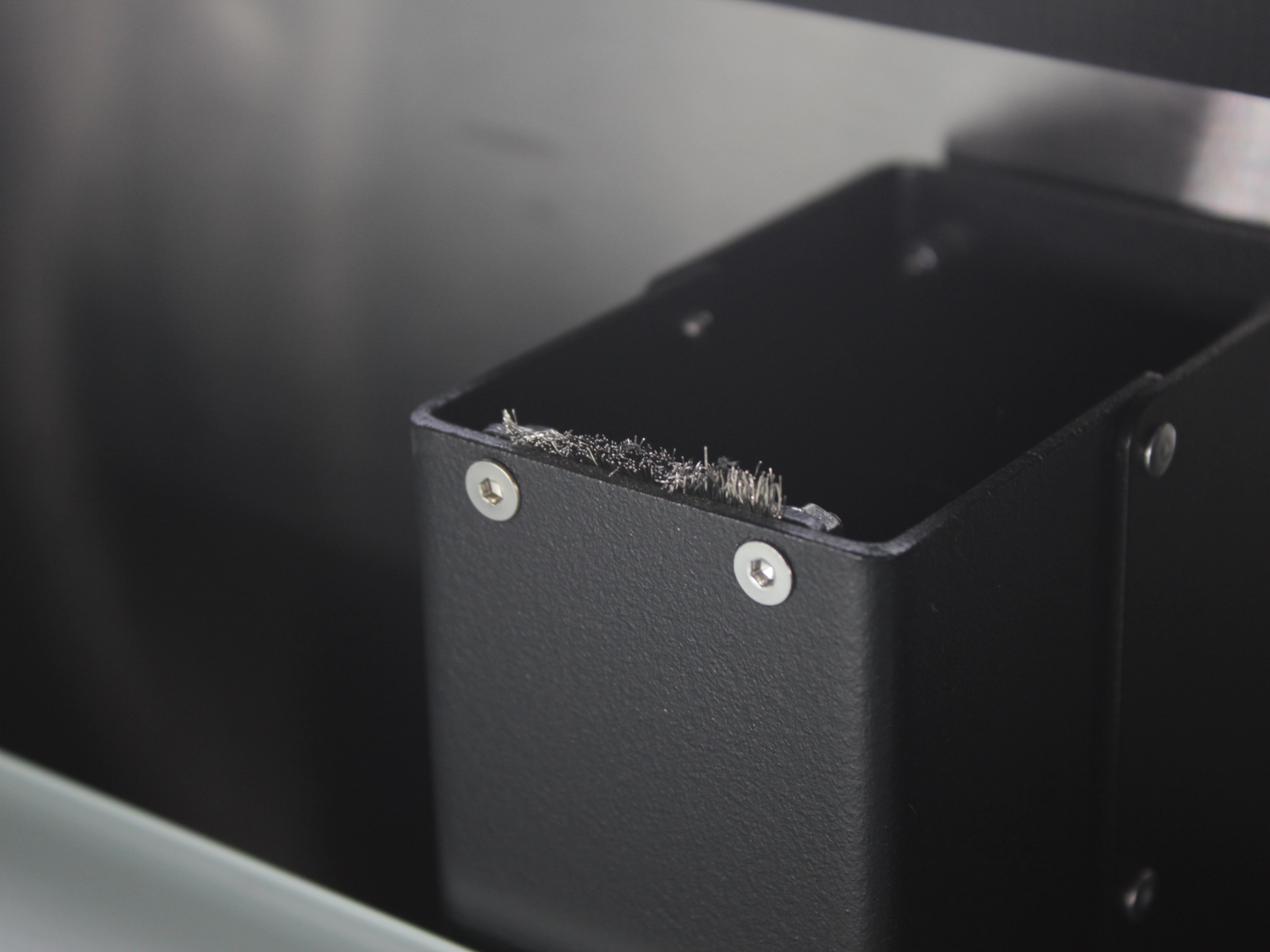

Worn wiper brush - bristles are damaged or missing. Replace immediately. For brush height adjustment instructions, see the Purge Bucket Brush Calibration Guide.

13. Microswitches XYUZ - Verify crisp click action and intact levers.
14. XYU Belts - Check for wear. Replace if damaged.
15. Ground Wires - Verify all grounding wires are intact and connections are tight.

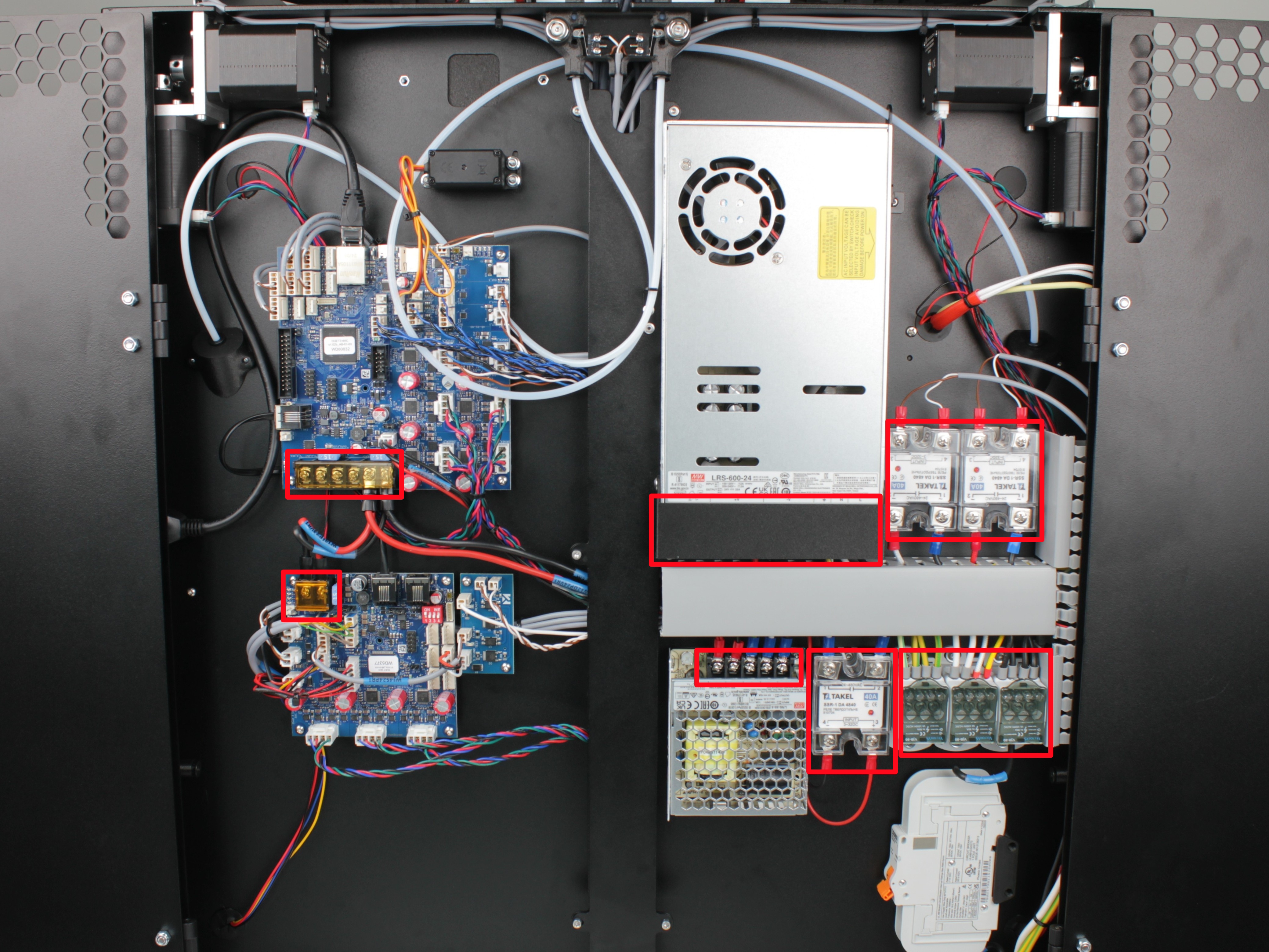

16. Electronics Terminal Blocks - Tighten all screws in electronics bay.

Terminal blocks with red markings indicate locations where screws need to be tightened.

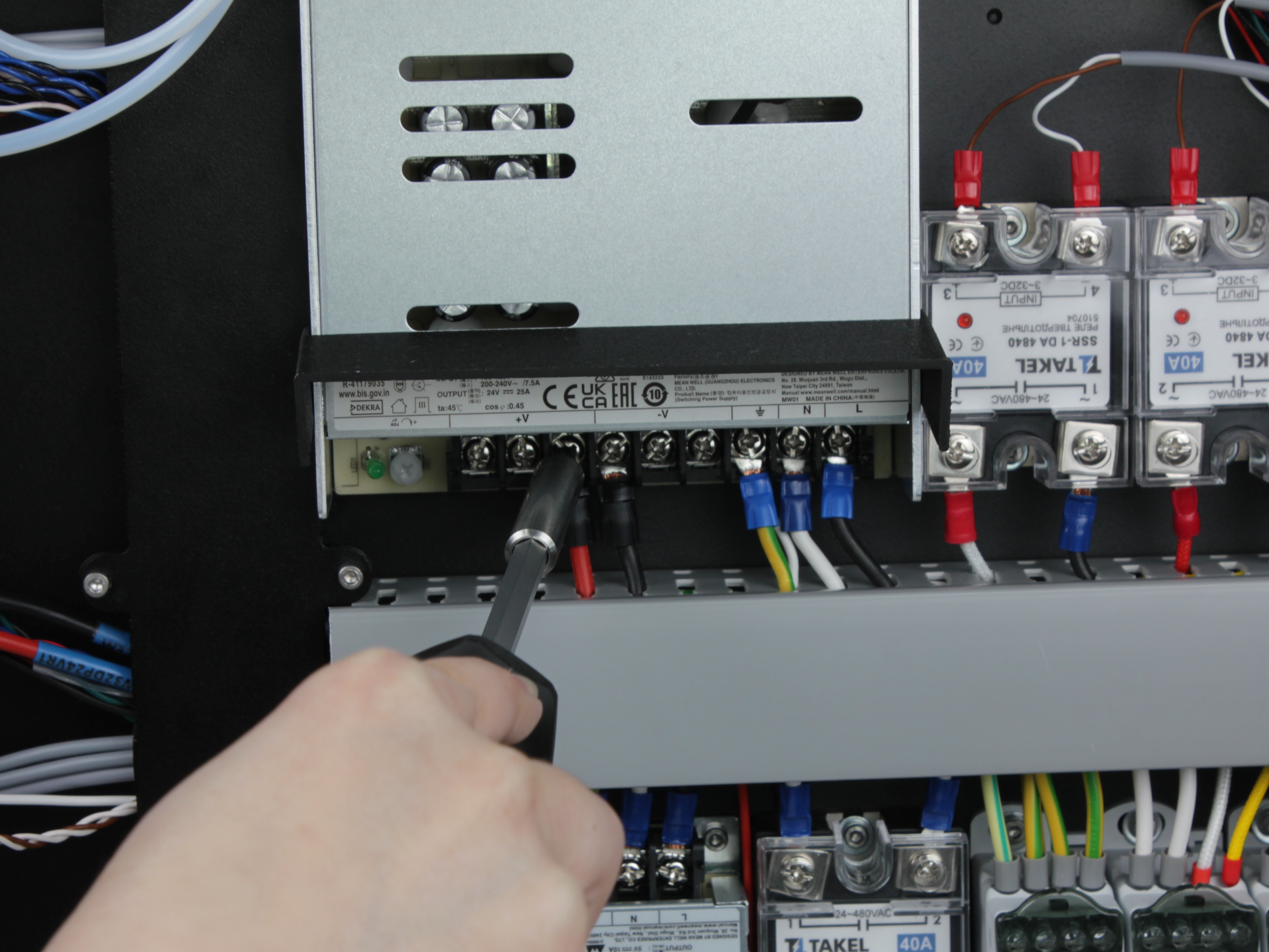

Example of proper screw tightening procedure on power supply terminal block.

17. Z-Probe & Servo Screws - Check the tightness of all screws in the Z-probe assembly and its servo drive:

    • the screws fastening the magnets to the probe;
    • the screws fastening the magnets to the probe holder;
    • the screws holding the microswitch inside the probe;
    • the screws fastening the servo to its housing.

    Tighten any screw that has worked loose.

Image not yet added

18. Linear Rail Screws - Check that the rail mounting screws are tight, and tighten any that have worked loose.

Image not yet added
